Flexible Fireproof Mineral Insulated Cable XLPE Insulated Flame Retardant Power Cable

Name: Flexible Fireproof Mineral Insulated Cable XLPE Insulated Flame Retardant Power Cable
Brand: Minfeng
Price: 0.1 USD

China Flexible Fireproof Mineral Insulated Cable XLPE Insulated Flame Retardant Power Cable wholesale

Brand Name : Minfeng

Model Number : bbtrz

Certification : ISO,CE,IEC,TUV,KEMA

Place of Origin : Hebei, China

MOQ : 100

Price : 0.1-5

Payment Terms : L/C,T/T

Supply Ability : 100KM/Week

Delivery Time : 10 Days

Origin : China

Jacket Color : Orange or optional

Size : 1.5-800mm2

Hs Code : 8544492100

Outerdiameter : Varies by size

Sheathmaterial : LSZH (Low Smoke Zero Halogen)

Color : Orange

Flameretardant : Yes

Contact Now

Bbtrz Flexible Mineral Insulated Fireproof High Temperature Resistant Power Cable

Product Specifications

Rated Voltage	0.6-1kV
Size	Customization
Conductor Material	Copper
Insulation Material	XLPE
Working Temperature	70°C, 90°C
Jacket	PVC
Application	Power Distribution, Construction, Home Appliance, Photovoltaic Power, Industrial, Mining, Power Station, Building, Other
Rated Current	Customization
Type	Low Voltage
Place of Origin	Hebei, China
Model Number	Customization
Brand Name	Minfeng
Color	Customer's Requirement
Service	ODM OEM Accepted

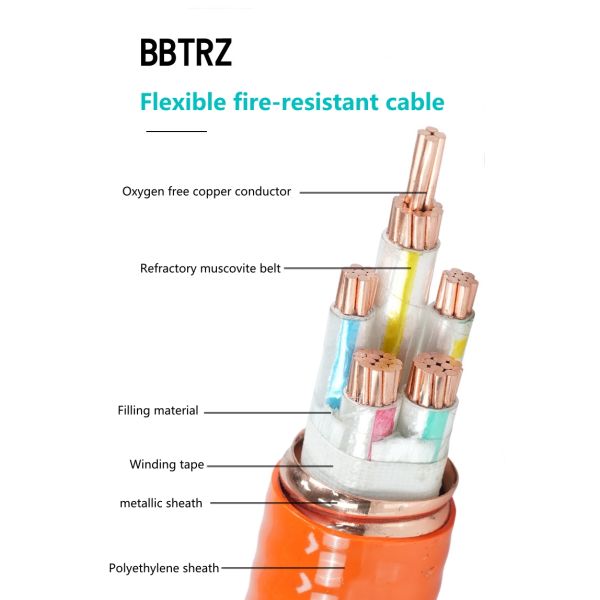

Product Structure Features

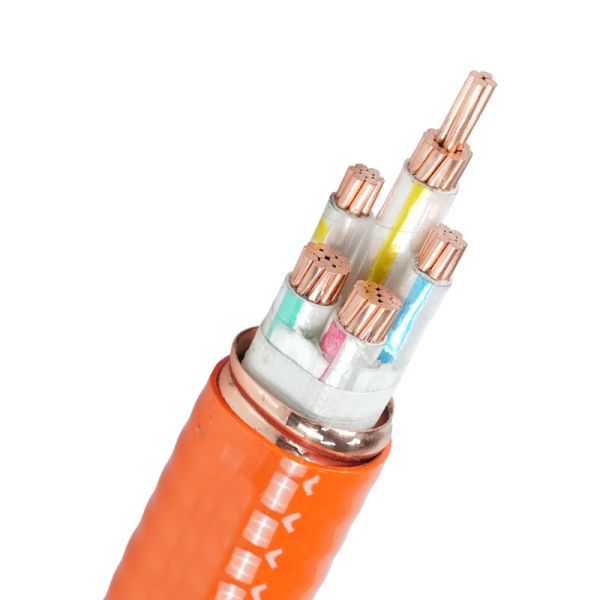

Flexible Fireproof Mineral Insulated Cable XLPE Insulated Flame Retardant Power Cable

Excellent High Temperature Resistance: XLPE insulation transforms polyethylene molecules into a three-dimensional network structure, enabling long-term operation at 90°C with a lifespan up to 40 years
Superior Insulation Performance: Maintains cross-linked polyethylene insulation properties with enhanced insulation resistance
High Mechanical Properties: Improved hardness, stiffness, wear resistance, and impact resistance
Chemical Resistance: Strong resistance to acids, alkalis, and oils
Environmental Protection: Combustion produces only water and carbon dioxide, meeting fire safety requirements with low environmental impact
Temperature Ratings: Maximum conductor temperature of 90°C during normal operation; up to 250°C during short circuit (maximum 5 seconds duration)

Product Introduction

Insulated PVC/XLPE sheathed power cable designed for power transmission and distribution systems with rated voltages of 0.6/1, 1.8/3, 3.6/6, 6/10, 8.7/10, 8.7/15, 12/20, 21/35, 26/35KV.

Cable Types & Applications

YJV, YJLV: XLPE insulated, PVC sheathed power cables suitable for indoors, tunnels, pipes, and buried in soil (not subject to mechanical force)
YJV22, YJLV22: XLPE insulated, steel tape armored PVC sheathed power cables suitable for indoor, tunnel, pipe penetration, and buried in soil
YJV32, 42, YJLV32, 42: XLPE insulated, steel wire armored PVC sheathed power cables suitable for shafts, water applications, areas with drop, and environments requiring external force resistance

Technical Specifications

Normal Operation Temperature: Maximum conductor temperature of 70°C for PVC insulation and 90°C for XLPE insulation
Short Circuit Temperature: PVC insulation - 160°C for conductor cross section ≤300mm², 140°C for conductor cross section >300mm²; XLPE insulation at 250°C
Installation Requirements: Ambient temperature not less than 0°C during cable laying
Minimum Bending Radius: Single core cable: unarmored 20D, armored 15D; Multi-core cable: unarmored 15D, armored 12D (where D = actual outer diameter of cable)
Cable Breaking Force: Aluminum core cable: 40*S (N); Copper core cable: 70*S (N)

Packing & Delivery

Product Tags:

Fireproof Mineral Insulated Cable

Flexible Mineral Insulated Cable

Flexible Flame Retardant Power Cable
