35kV XLPE Insulated PVC Sheathed Power Cable Underground Submarine Electrical Cable

Brand Name : Minfeng

Model Number : submarine cable

Certification : ISO,CE,IEC,TUV,KEMA

Place of Origin : Hebei, China

MOQ : 100

Price : 0.1-5

Payment Terms : L/C,T/T

Supply Ability : 100KM/Week

Delivery Time : 10 Days

Waterresistance : Water Resistant

Standard : IEC60502-1

Cores : 4

Cable Application : submarine cable

Manufacturer : Minfeng Cable Group

Jacket : PVC/LSZH/LSOH

Contact Now

35kV Submarine Cable Waterproof PVC Sheathed XLPE Insulated Underground Electrical Cable
Product Overview

Medium voltage power cables refer to power cables with a voltage range of 3-35 kilovolts (KV), primarily consisting of two voltage levels: 8.7/15KV and 26/35KV. These cables are classified as medium power cables (35 kV and below) according to voltage level standards.

Key Specifications
Size Custom
Conductor Material Copper
Insulation Material XLPE
Jacket PVC
Application Underground
Type Medium Voltage
Place of Origin Hebei, China
Brand Name Minfeng
Model Number Power Cable
Certificate CE/ISO9001/ISO14001/OHSAS18001/CCC
Color Black or customized
Core 1 or 3 core
Available Specifications
Copper Core (Three Cores) Aluminum Core (Three Cores) Copper Core (Single Core) Aluminum Core (Single Core)
YJV22 3*25 YJLV22 3*25 YJV22 1*25 YJLV22 1*25
YJV22 3*35 YJLV22 3*35 YJV22 1*35 YJLV22 1*35
YJV22 3*50 YJLV22 3*50 YJV22 1*50 YJLV22 1*50
YJV22 3*70 YJLV22 3*70 YJV22 1*70 YJLV22 1*70
YJV22 3*95 YJLV22 3*95 YJV22 1*95 YJLV22 1*95
YJV22 3*120 YJLV22 3*120 YJV22 1*120 YJLV22 1*120
YJV22 3*150 YJLV22 3*150 YJV22 1*150 YJLV22 1*150
YJV22 3*185 YJLV22 3*185 YJV22 1*185 YJLV22 1*185
YJV22 3*240 YJLV22 3*240 YJV22 1*240 YJLV22 1*240
YJV22 3*300 YJLV22 3*300 YJV22 1*300 YJLV22 1*300
YJV22 3*400 YJLV22 3*400 YJV22 1*400 YJLV22 1*400

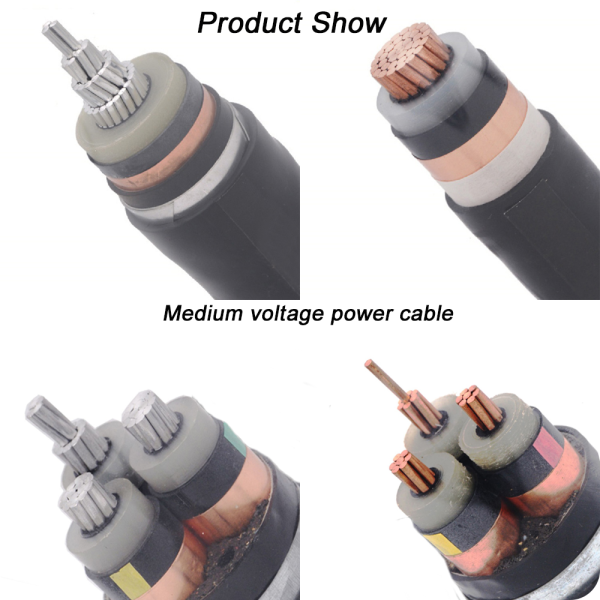

35kV XLPE Insulated PVC Sheathed Power Cable Underground Submarine Electrical Cable
Technical Standards
  • IEC 60502, 60228, 60332, 60331
  • DIN VDE 0276-620
  • HD 620 S1: 1996
  • DIN EN 60228 class 2 (construction)
Applications

This cable is used for fixed installations, such as distribution networks or industrial installations. It can be installed in cable ducts, trenches, or directly buried in earth.

Detailed Product Specifications
  • Rated Voltage: 0.6/1KV, 3.6/6KV, 6.5/11KV, 11KV, 33KV, 66KV, 132KV
  • Maximum working temperature: 90°C
  • Maximum temperature during short circuit (≤5S): 250°C
  • Conductor: class 1, 2 copper or aluminum
  • Sectional area: 25 - 630mm²
  • Insulation: XLPE
  • Number of cores: 1, 3
  • Armor: steel wire or steel tape for 3 core cables and non-magnetic material for single core
  • Oversheath: PVC
  • Minimum bending radius: 15 times cable radius for single-core cables and 12 times for multi-core ones
  • Maximum conductor DC resistance at 20°C
