6 Sq Mm 600V DC Weather Resistant High Temperature Resistant Long Service Life Solar PV Cable

Certification : ISO,CE,IEC,TUV,KEMA

Outer Sheath Color : Black or as per required

Halogen Free : Available

Brand Name : Minfeng

MOQ : 100

Model Number : Solar Cable

Payment Terms : L/C,T/T

Delivery Time : 10 Days

Cores No : 1-5

Insulation : XLPE

Place of Origin : Hebei, China

Conductor Material : copper or Al-alloy

Supply Ability : 100KM/Week

Flame Retardant : Available

Core Mark : Number or Color Strip

Type : YJV YJV22 YJV32

Price : 0.1-5

Contact Now

6 Sq Dc 4mm 25mm Electric Solar Wire Cable
PV1-F Photovoltaic Cable

PV1-F photovoltaic cable is a special cable used for solar photovoltaic modules in the system. It features weather resistance, high temperature resistance, and friction resistance with a long service life. The cable utilizes high-quality oxygen-free tinned copper conductors to ensure superior conductive effect, along with high-performance insulating materials and sheath materials after radiation cross-linking by a high-energy electron accelerator for reliable insulating and mechanical properties.

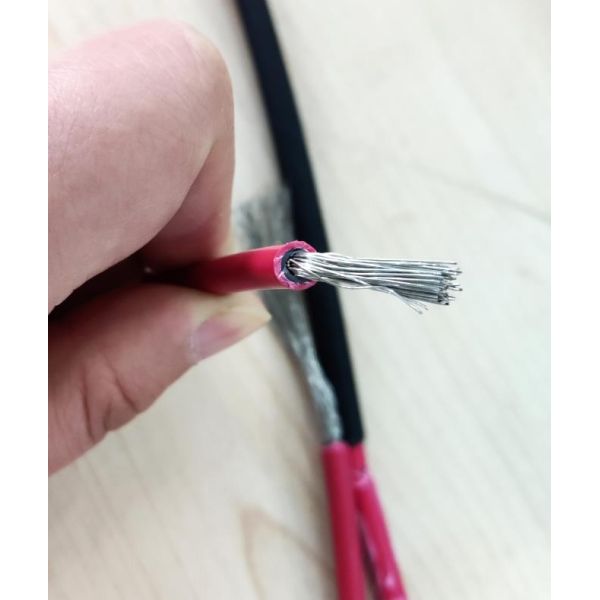

6 Sq Mm 600V DC Weather Resistant High Temperature Resistant Long Service Life Solar PV Cable 6 Sq Mm 600V DC Weather Resistant High Temperature Resistant Long Service Life Solar PV Cable
Cable Structure
  • Application standard: 2 PfG 1169/08.2007
  • Conductor: Stranded tinned copper wire conforming to DIN VDE 0295 and IEC 60228 Class 5
  • Insulation: Irradiation cross-linked low-smoke halogen-free flame-retardant polyolefin
  • Sheath: Irradiation cross-linked low-smoke halogen-free flame-retardant polyolefin
  • Insulation nominal thickness: 0.8mm
  • Nominal thickness of sheath: 0.9mm
  • Nominal cross section: 4mm²
  • Outer diameter of finished wire: 6.1±0.1mm
  • Specification: 1×1.5～1×70mm²; 2×1.5～2×35mm² AWG American standard and other specifications can be consulted and customized
Electrical Performance
  • Rated voltage U0/U: 0.6/1 kV AC; 0.9/1.5 kV DC
  • Maximum allowable AC voltage: 1.8 kV DC (conductor/conductor, no grounding system, when the circuit is unloaded)
  • Insulation resistance: 1000 MΩ-km
  • Conductor resistance (20℃): ≤5.09Ω/km
  • Sheath surface resistance: The surface resistance of the finished cable sheath should not be less than 10⁹Ω

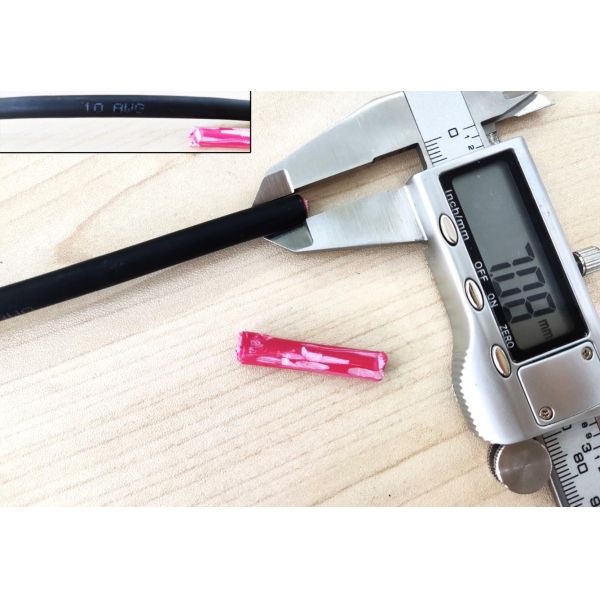

6 Sq Mm 600V DC Weather Resistant High Temperature Resistant Long Service Life Solar PV Cable 6 Sq Mm 600V DC Weather Resistant High Temperature Resistant Long Service Life Solar PV Cable
Thermal Performance
  • Indoor temperature: -40℃ ~ +90℃
  • Conductor temperature: IEC / EN 60216-1 120℃ (20000h)
  • Short circuit temperature: 200℃/5 s
  • Heat resistance test: EN 60216-2 (temperature +120°C)
  • High temperature pressure test: EN 60811-3-1
  • Heat resistance: EN60068-2-78, 85% humidity
6 Sq Mm 600V DC Weather Resistant High Temperature Resistant Long Service Life Solar PV Cable
Mechanical Behavior
  • Minimum bending radius: 4×OD (fixed), 5×OD (flexing)
  • Osmotic: 2 PfG 1169/08.2007 appendix F
  • Slot propagation: 2 PfG 1169/08.2007 Appendix G
  • Tensile strength and elongation of insulation and sheath: EN 60811
  • Life expectancy: 25 years
Twin Core PV1-F Solar Cable Specifications
Cross Section (mm²) Conductor Construction (n/mm) Conductor OD (mm) Cable Outer (mm) Resistance Max. (Ω/km) Current Carrying Capacity (A)
2 x 1.5mm² twin core solar cable 30/0.25 1.58 8.3 ± 0.2 13.30 30
2 x 2.5mm² two core solar pv cable 50/0.25 2.02 9.2 ± 0.2 7.98 41
2 x 4mm² dual core solar cable 56/0.3 2.60 12.0 ± 0.2 4.75 50
2 x 6mm² pv cable wire 84/0.3 3.42 13.5 ± 0.2 3.39 70
2 x 10mm² solar cable wire 142/0.3 4.56 17.6 ± 0.2 1.95 98
2 x 16mm² solar wire 228/0.3 5.60 19.8 ± 0.2 1.24 132
Application & Features

Application: PV1-F cable for indoor photovoltaic solar installation of electric equipment line.

Main Features and Advantages:
  • Superior photovoltaic UV resistance
  • Excellent heat and cold resistance
  • Ultraviolet radiation resistance
  • Ozone resistance
  • Water resistance
  • Acid and salt corrosion resistance
  • Superior wear resistance and weather capability
